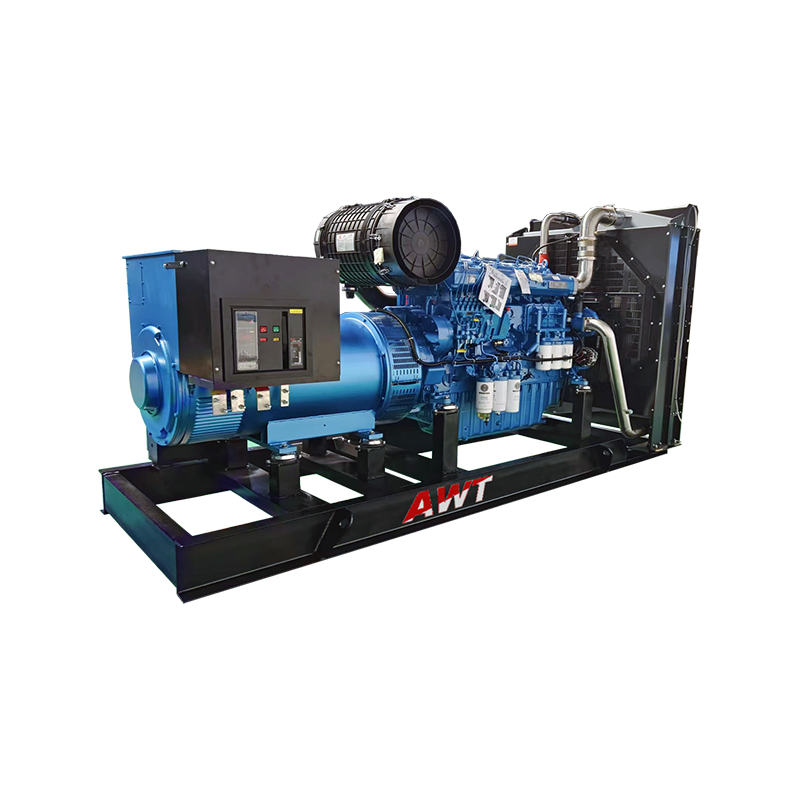

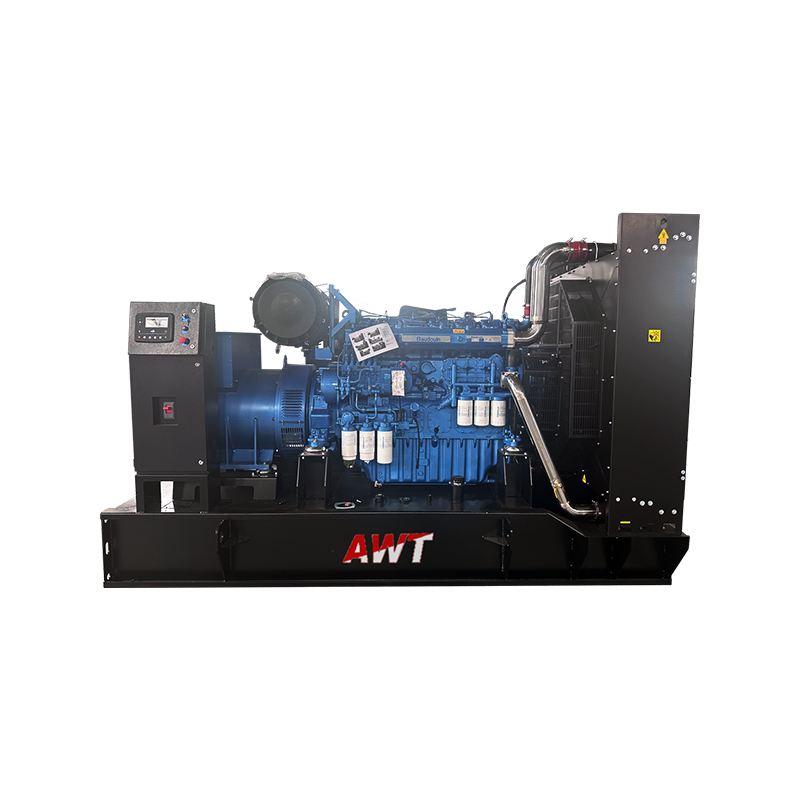

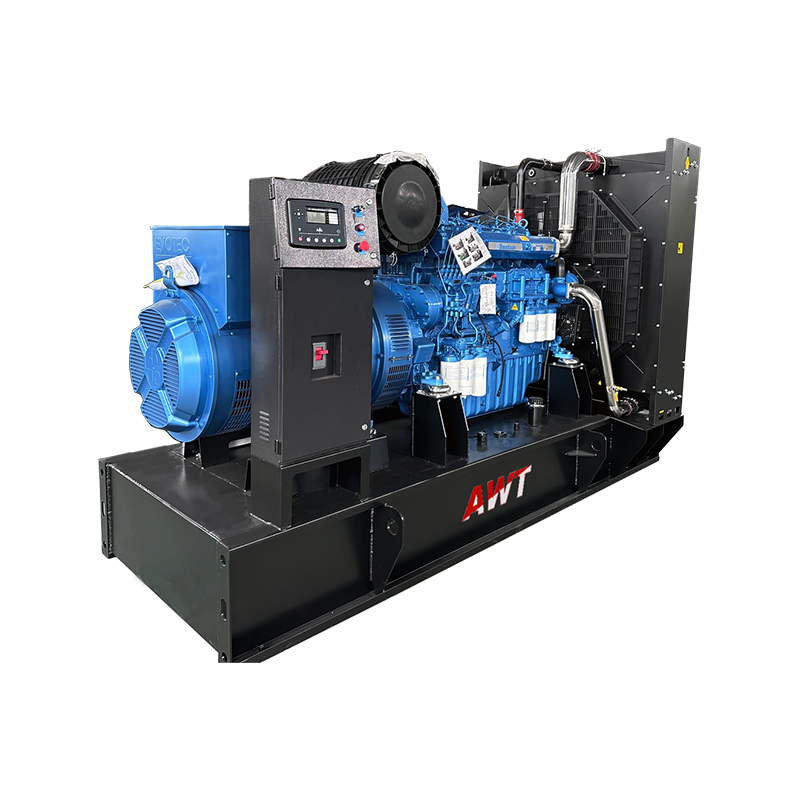

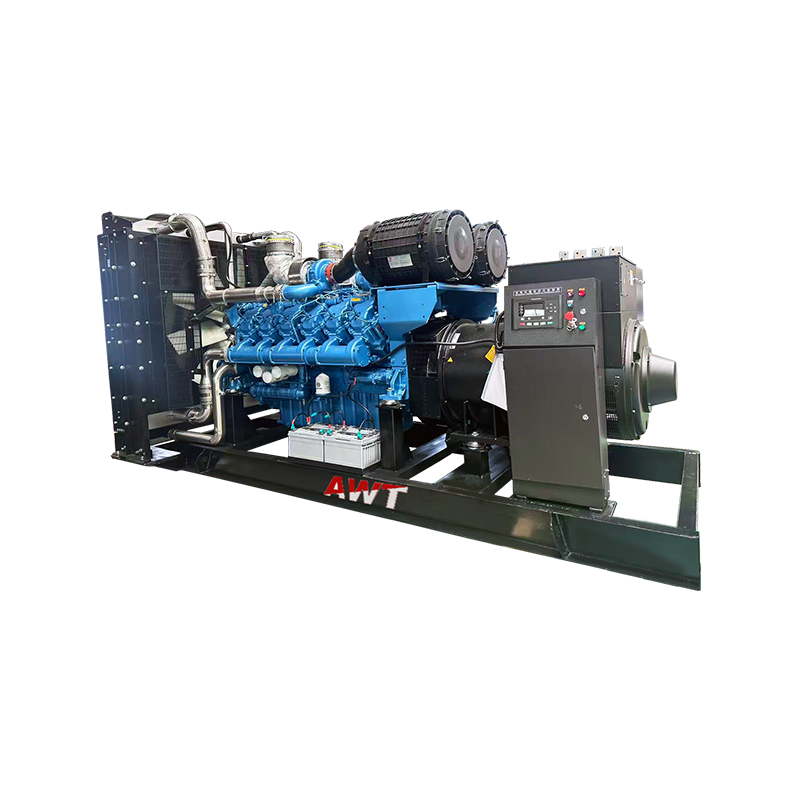

Baudouin Powered Diesel Generator Sets

Fully compliant with ISO 8528 and GB/T 2828 standards, these gensets integrate authentic Baudouin heavy-duty engines, high-precision full-copper brushless alternators and intelligent control systems. Covering a wide power range from 15kW up to 5000kW, they perfectly meet standby, prime and continuous power demands. With mature European industrial technology and rigorous global field verification, the units excel in fast load response, low fuel consumption, extreme durability and strong environmental adaptability, ideal for data centers, industrial parks, ports, oilfields and key municipal projects.

Contact Us
PREV: Yuchai Powered Diesel Generator Sets NEXT: MTU Powered Diesel Generator Sets

Product Information

Driven by genuine French Baudouin industrial diesel engines, our generator sets feature premium load capacity, ultra-high stability and long service life. Delivering reliable high-end power solutions, they are widely adopted for critical standby and prime power scenarios worldwide.

Core Configuration

Engine: Genuine Baudouin series heavy-duty diesel engines adopt high-pressure common rail fuel injection and high-efficiency turbocharging intercooling technology. Equipped with replaceable wet cylinder liners and multi-turbo design, the engines support 0–100% full load instantaneous switching. They operate stably under high altitude, extreme temperature, dusty and salt-spray corrosive conditions, with ultra-long overhaul cycle and global standardized after-sales support.

Alternator: Maintenance-free brushless synchronous full-copper alternator with Class H insulation and IP22–IP23 protection rating. Complying with ISO G3 high power quality standard, it delivers ultra-stable voltage and frequency with low waveform distortion, fully adaptable to precision IT equipment, data center loads and non-linear industrial devices.

Control System: Chinese-English dual-language LCD intelligent controller with full-range fault protection. It supports automatic start/stop, ATS power transfer, 4G remote monitoring, cloud management and multi-unit parallel operation, realizing fully unattended intelligent operation.

Auxiliary System: Equipped with a closed-loop cooling system, high-efficiency triple filtration, professional vibration dampers, low-noise muffler, and integrated base frame. The optimized modular structure simplifies installation and daily maintenance while improving overall operational stability.

Key Advantages

Premium Industrial-Grade Durability

Built with European heavy-duty design, Baudouin engines feature a 100,000-hour overhaul lifespan and 15-year service reliability. Proven in global high-standard projects, the gensets have ultra-low failure rates and outstanding heavy-load resistance.

Fast Load Response & High Stability

Featuring low-inertia supercharging and precision fuel control, the units achieve instant full-load pickup with smooth power output. It ensures zero-delay power compensation for critical scenarios such as data center power failure.

Optimized Fuel Economy & Low Lifecycle Cost

Advanced high-pressure common rail technology enables full fuel combustion with 5% lower fuel consumption than conventional models. Long overhaul cycles and universal spare parts effectively reduce long-term operational and maintenance costs.

Strong Extreme Environment Adaptability

The gensets maintain stable rated power with minor attenuation under high altitude, high temperature, severe cold, dust, and coastal corrosion environments. Customized cold-start, dust-proof and anti-corrosion solutions are available for special working conditions.

Eco-Friendly & Flexible Deployment

Meets China National III/IV non-road emission standards and EPA emission requirements. The silent version achieves noise ≤75dB(A). Multiple types, including open-frame, silent canopy, trailer-mounted, containerized, and high-voltage models, are optional, supporting personalized customization and parallel operation.

Power Range & Applications

15–100kW: Commercial buildings, offices, shops, small facilities, and daily emergency backup power.

100–1000kW: Hospitals, malls, hotels, municipal engineering, medium factories and mines.

1000–5000kW: Large data centers, industrial parks, ports, oil & gas fields, offshore islands and core industrial power stations.



Optional Accessories & Customization

ATS automatic transfer switch, generator paralleling cabinet, 4G remote monitoring & cloud management system; silent enclosure, rain canopy, mobile trailer, integrated container power station; low-temperature cold-start preheater, enlarged fuel tank, explosion-proof and anti-corrosion customization; genuine spare parts and full-lifecycle professional maintenance services.

Genset Model Genset Prime Power Genset Standby Power  Engine Model Open Type   Dimension(mm) Open Type Weight(kg) Silent Type   Dimension(mm) Silent Type Weight(kg)
kW kVA kW kVA
Baudouin Series Stage IIIA （50HZ）
AWT-B14 14 18  16 20  4M08G2D3/5 1600*800*1250 650 2200*1000*1450 1100
AWT-B16 16 20  18 23  4M08G4D3/5 1650*600*1150 650 2200*1000*1450 1100
AWT-B24 24 30  30 38  4M08G8D3/5 1800*800*1350 700 2400*1100*1550 1200
AWT-B30 30 38  36 45  4M08G10D3/5 1800*800*1350 750 2400*1100*1550 1250
AWT-B50 50 63  55 69  4M10G2D3/5 1800*800*1350 750 2400*1100*1550 1250
AWT-B64 64 80  70 88  4M10G4D3/5 1800*750*1200 750 2400*1100*1550 1250
AWT-B80 80 100  88 110  4M10G6D3/5 1800*750*1200 750 2400*1100*1550 1250
AWT-B90 90 113  100 125  4M12G1D3/5 1850*750*1200 1000 2600*1100*1550 1550
AWT-B100 100 125  120 150  4M12G2D3/5 2150*850*1350 1000 2800*1180*1600 1700
AWT-B120 120 150  132 165  4M12G4D3/5 2150*850*1350 1200 2800*1180*1600 1900
AWT-B150 150 188  160 200  6M12G2D3/5 2100*900*1550 1400 2800*1180*1600 2100
AWT-B180 180 225  200 250  6M12G6D3/5 2470*930*1450 1550 3200*1300*1850 2450
AWT-B200 200 250  220 275  6M12G8D3/5 2470*950*1450 1600 3200*1300*1850 2500
AWT-B250 250 313  280 350  6M16G8D3/5 2470*990*1450 1700 3200*1300*1850 2600
AWT-B300 300 375  320 400  6M21G2D3/5 2750*1050*1800 1900 3600*1400*2050 3000
AWT-B350 350 438  400 500  6M21G6D3/5 2750*1050*1800 2100 3600*1400*2050 3200
AWT-B400 400 500  440 550  6M21G8D3/5 2900*1100*1800 2200 3600*1400*2050 3300
AWT-B520 520 650  580 725  6M33G6D3/5 2900*1100*1800 2300 3600*1400*2050 3400
AWT-B600 600 750  650 813  6M33G8D3/5 2850*1000*1530 2500 3600*1400*2050 3600
AWT-B640 640 800  700 875  8M33G2D3/5 4100*1800*2200 7800 4900*2000*2500 9800
AWT-B720 720 900  800 1000  8M33G4D3/5 4200*1800*2200 7200 4900*2000*2500 9200
AWT-B800 800 1000  880 1100  8M33G6D3/5 4300*1800*2200 7500 5500*2200*2600 10000
AWT-B900 900 1125  1000 1250  12M33G6D3/5 4500*1850*2200 8000 5500*2200*2600 10500
AWT-B1000 1000 1250  1100 1375  12M33G8D3/5 4500*1850*2250 8500 5500*2200*2600 11000
AWT-B1100 1100 1375  1200 1500  12M33G10D3/5 4400*1850*2250 8500 5500*2200*2600 11000
AWT-B1200 1200 1500  1320 1650  12M33G14D3/5 4500*2000*2350 9200 5500*2400*2800 12000
AWT-B1250 1250 1563  1400 1750  16M33G0D3/5 7200*2150*2340 13000 / /
AWT-B1400 1400 1750  1520 1900  16M33G4D3/5 7200*2150*2340 13500 / /
AWT-B1500 1500 1875  1650 2063  16M33G6D3/5 7200*2150*2340 13800 / /
AWT-B1600 1600 2000  1800 2250  16M33G8D3/5 7200*2150*2340 14000 / /
AWT-B1600 1600 2000  1800 2250  20M33G2D3/5 7200*2150*2340 14000 / /
AWT-B1800 1800 2250  2000 2500  20M33G4D3/5 7200*2150*2340 14000 / /
AWT-B1800 1800 2250  2000 2500  12M55G2D3/5 6620*2210*2500 14000 / /
AWT-B2000 2000 2500  2200 2750  12M55G4D3/5 8230*2600*2700 22000 / /
AWT-B2200 2200 2750  2400 3000  12M55G6D3/5 8230*2600*2700 22000 / /
AWT-B2250 2250 2813  2500 3125  16M55G0D3/5 8230*2600*2700 22000 / /
AWT-B2400 2400 3000  2650 3313  16M55G2D3/5 8230*2600*2700 22000 / /
AWT-B2600 2600 3250  3000 3750  16M55G4D3/5 8230*2600*2700 22000 / /
AWT-B3000 3000 3750  3300 4125  16M55G6D3/5 8230*2600*2700 29800 / /
Baudouin Series（50HZ）
AWT-B15 15 19  16 20  4M06G20/5 1600*800*1250 650 2200*1000*1450 1100
AWT-B18 18 23  20 25  4M06G25/5 1650*600*1150 650 2200*1000*1450 1100
AWT-B26 26 33  28 35  4M06G35/5 1800*800*1350 700 2400*1100*1550 1200
AWT-B32 32 40  35 44  4M06G44/5 1800*800*1150 750 2400*1100*1550 1250
AWT-B36 36 45  40 50  4M06G50/5 1800*800*1350 750 2400*1100*1550 1250
AWT-B40 40 50  44 55  4M06G55/5 1800*750*1200 750 2400*1100*1550 1250
AWT-B52 52 65  57 71  4M10G70/5 1850*750*1200 1000 2600*1100*1550 1550
AWT-B64 64 80  70 88  4M10G88/5 2150*850*1350 1000 3000*1180*1700 1700
AWT-B80 80 100  88 110  4M10G110/5 2150*850*1350 1200 3000*1180*1700 1900
AWT-B80 80 100  100 125  4M10G125/5 2100*900*1550 1400 3000*1180*1700 2100
AWT-B108 108 135  120 150  6M11G150/5 2470*930*1450 1550 3200*1300*1850 2450
AWT-B120 120 150  132 165  6M11G165/5 2470*950*1450 1600 3200*1300*1850 2500
AWT-B135 135 169  150 188  6M11G188/5 2470*990*1450 1700 3200*1300*1850 2600
AWT-B160 160 200  176 220  6M16G220/5 2750*1050*1500 1900 3600*1400*2050 3000
AWT-B184 184 230  200 250  6M16G250/5 2750*1050*1500 2100 3600*1400*2050 3200
AWT-B200 200 250  220 275  6M16G275/5 2900*1100*1600 2200 3800*1500*2100 3350
AWT-B220 220 275  240 300  6M16G300/5 2900*1100*1600 2300 3800*1500*2100 3450
AWT-B250 250 313  280 350  6M16G350/5 2950*1100*1630 2500 3800*1500*2100 3650
AWT-B300 300 375  320 400  6M21G400/5 3100*1150*1660 2500 3800*1500*2100 3650
AWT-B320 320 400  350 438  6M21G440/5 3500*1500*1800 4800 4300*1700*2350 6400
AWT-B360 360 450  400 500  6M21G500/5 3500*1500*1800 4800 4300*1700*2350 6400
AWT-B400 400 500  440 550  6M21G550/5 3600*1500*1850 5000 4300*1700*2350 6600
AWT-B480 480 600  528 660  6M33G660/5 3700*1550*1850 5500 4500*1800*2380 7200
AWT-B520 520 650  572 715  6M33G715/5 3700*1550*1850 5600 4500*1800*2380 7300
AWT-B544 544 680  600 750  6M33G750/5 3900*1800*2100 7000 4900*2000*2500 9000
AWT-B600 600 750  660 825  6M33G825/5 4500*1800*2200 7800 5500*2200*2600 10300
AWT-B640 640 800  720 900  8M33G900/5 4200*1800*2200 7200 5500*2200*2600 9700
AWT-B720 720 900  800 1000  8M33G1000/5 4300*1800*2200 7500 5500*2200*2600 10000
AWT-B800 800 1000  880 1100  8M33G1100/5 4500*1850*2200 7500 5500*2200*2600 10000
AWT-B640 640 800  700 875  12M26G900/5 4500*1850*2200 8000 5500*2200*2600 10500
AWT-B720 720 900  800 1000  12M26G1000/5 4500*1850*2250 8500 5500*2200*2600 11000
AWT-B800 800 1000  880 1100  12M26G1100/5 4400*1850*2250 8500 5500*2200*2600 11000
AWT-B900 900 1125  1000 1250  12M33G1250/5 4500*2000*2350 9200 5500*2400*2800 12000
AWT-B1000 1000 1250  1100 1375  12M33G1400/5 4500*2050*2450 9500 5500*2400*2800 12300
AWT-B1100 1100 1375  1200 1500  12M33G1500/5 4500*2100*2500 10000 5500*2400*2800 12800
AWT-B1200 1200 1500  1320 1650  12M33G1650/5 4600*2000*2500 8200 5500*2400*2800 11000
AWT-B1200 1200 1500  1360 1700  16M33G1700/5 7200*2150*2340 13000 / /
AWT-B1400 1400 1750  1520 1900  16M33G1900/5 7200*2150*2340 13500 / /
AWT-B1500 1500 1875  1650 2063  16M33G2000/5 7200*2150*2340 13800 / /
AWT-B1650 1650 2063  1800 2250  16M33G2250/5 7200*2150*2340 14000 / /
AWT-B1600 1600 2000  1800 2250  20M33G2250/5 7200*2150*2340 14000 / /
AWT-B1800 1800 2250  2000 2500  20M33G2500/5 7200*2150*2340 14000 / /
AWT-B1824 1824 2280  2040 2550  12M55G2550/5 6620*2210*2500 14000 / /
AWT-B2000 2000 2500  2200 2750  12M55G2750/5 8230*2600*2700 22000 / /
AWT-B2200 2200 2750  2400 3000  12M55G3000/5 8230*2600*2700 22000 / /
AWT-B2250 2250 2813  2500 3125  16M55G3000/5 8230*2600*2700 22000 / /
AWT-B2400 2400 3000  2650 3313  16M55G3300/5 8230*2600*2700 22000 / /
AWT-B2600 2600 3250  3000 3750  16M55G3750/5 8230*2600*2700 22000 / /
AWT-B3000 3000 3750  3300 4125  16M55G4000/5 8230*2600*2700 29800 / /
Baudouin Series（60HZ）
AWT-B18 18 23  20 25  4M06G20/6 1600*800*1250 650 2200*1000*1450 1100
AWT-B24 23 29  25 31  4M06G25/6 1650*600*1150 650 2200*1000*1450 1100
AWT-B30 30 38  33 41  4M06G33/6 1800*800*1350 700 2400*1100*1550 1200
AWT-B37 37 46  41 51  4M06G41/6 1800*800*1350 750 2400*1100*1550 1250
AWT-B45 45 56  50 63  4M06G50/6 1800*800*1350 750 2400*1100*1550 1250
AWT-B50 50 63  55 69  4M06G55/6 1800*750*1200 750 2400*1100*1550 1250
AWT-B60 60 75  66 83  4M10G66/6 1800*750*1200 750 2400*1100*1550 1250
AWT-B75 75 94  83 104  4M10G83/6 1850*750*1200 1000 2600*1100*1550 1550
AWT-B90 90 113  100 125  4M10G105/6 2150*850*1350 1000 3000*1180*1700 1700
AWT-B100 100 125  110 138  6M11G110/6 2150*850*1350 1200 3000*1180*1700 1900
AWT-B120 120 150  135 169  6M11G135/6 2100*900*1550 1400 3000*1180*1700 2100
AWT-B145 145 181  160 200  6M11G160/6 2470*930*1450 1550 3200*1300*1850 2450
AWT-B160 160 200  176 220  6M11G176/6 2470*950*1450 1600 3200*1300*1850 2500
AWT-B180 180 225  200 250  6M16G200/6 2470*990*1450 1700 3200*1300*1850 2600
AWT-B200 200 250  220 275  6M16G220/6 2750*1050*1800 1900 3400*1300*1950 2900
AWT-B227 227 284  250 313  6M16G250/6 2750*1050*1800 2100 3400*1300*1950 3100
AWT-B280 280 350  308 385  6M16G308/6 2900*1100*1800 2200 3600*1400*2050 3300
AWT-B300 300 375  330 413  6M21G330/6 2900*1100*1800 2300 3600*1400*2050 3400
AWT-B350 350 438  390 488  6M21G390/6 2850*1000*1530 2500 3600*1400*2050 3600
AWT-B360 360 450  400 500  6M21G400/6 3100*1150*1560 2500 3800*1500*2100 3650
AWT-B400 400 500  460 575  6M21G460/6 3500*1500*1800 4800 4200*1600*2250 6250
AWT-B520 520 650  575 719  6M33G575/6 3500*1500*1800 4800 4200*1600*2250 6250
AWT-B550 550 688  600 750  6M33G600/6 3600*1500*1850 5000 4300*1700*2350 6600
AWT-B575 575 719  633 791  6M33G633/6 3700*1550*1850 5500 4500*1800*2380 7200
AWT-B600 600 750  660 825  6M33G660/6 3700*1550*1850 5600 4500*1800*2380 7300
AWT-B700 700 875  770 963  8M33G770/6 3900*1800*2100 7000 4600*1900*2430 8800
AWT-B720 720 900  800 1000  8M33G800/6 4100*1800*2200 7000 4900*2000*2500 9000
AWT-B800 800 1000  900 1125  8M33G900/6 4200*1800*2200 7200 5500*2200*2600 9700
AWT-B720 720 900  800 1000  12M26G800/6 4300*1800*2200 7500 5500*2200*2600 10000
AWT-B800 800 1000  900 1125  12M26G900/6 4500*1850*2200 8000 5500*2200*2600 10500
AWT-B910 910 1138  1000 1250  12M26G1000/6 4500*1850*2250 8500 5500*2200*2600 11000
AWT-B900 900 1125  1000 1250  12M33G1000/6 4400*1850*2250 8500 5500*2200*2600 11000
AWT-B1000 1000 1250  1100 1375  12M33G1100/6 4500*2000*2350 9200 5500*2400*2800 12000
AWT-B1092 1092 1365  1200 1500  12M33G1200/6 4500*2050*2450 9500 5500*2400*2800 12300
AWT-B1176 1176 1470  1300 1625  12M33G1300/6 4500*2100*2500 10000 5500*2400*2800 12800
AWT-B1275 1275 1594  1400 1750  16M33G1400/6 4600*2000*2500 8200 5500*2400*2800 11000
AWT-B1365 1365 1706  1500 1875  16M33G1500/6 7200*2150*2340 13000 / /
AWT-B1500 1500 1875  1650 2063  16M33G1650/6 7200*2150*2340 13500 / /
AWT-B1500 1500 1875  1750 2188  16M33G1750/6 7200*2150*2340 13800 / /
AWT-B1600 1600 2000  1750 2188  20M33G2000/6 7200*2150*2340 14000 / /
AWT-B1800 1800 2250  2000 2500  20M33G2200/6 7200*2150*2340 14000 / /
AWT-B2000 2000 2500  2200 2750  12M55G2200/6 7200*2150*2340 14000 / /
AWT-B2045 2045 2556  2300 2875  12M55G2250/6 6620*2210*2500 14000 / /
AWT-B2250 2250 2813  2500 3125  12M55G2500/6 8230*2600*2700 22000 / /
AWT-B2400 2400 3000  2640 3300  16M55G2640/6 8230*2600*2700 22000 / /
AWT-B2560 2560 3200  2800 3500  16M55G2800/6 8230*2600*2700 22000 / /
AWT-B2640 2640 3300  3000 3750  16M55G3000/6 8230*2600*2700 22000 / /
AWT-B3000 3000 3750  3300 4125  16M55G3300/6 8230*2600*2700 22000 / /

Hot Products

About Aiweite

Founded in 2008, Yangzhou Aiweite Electromechanical Co., Ltd. has accumulated extensive experience in the manufacture and installation of generator sets ranging from 1 kVA to 2,500 kVA. We are China Baudouin Powered Diesel Generator Sets Manufacturers and Wholesale Baudouin Powered Diesel Generator Sets Factory. Over the years, Aiweite has continued to strengthen its capabilities and market presence, and we are committed to becoming a reliable long-term partner for customers worldwide.

Through continuous innovation, we consistently improve the efficiency, durability, and environmental performance of our products. Advanced manufacturing equipment and strict quality management are applied throughout production to ensure that every generator set meets applicable international standards.

We have established long-term and stable relationships with customers across different markets and place strong emphasis on customer satisfaction. Comprehensive support is provided before, during, and after each project, ensuring that customer requirements are addressed promptly and effectively.

Guided by the principle of "Quality First, Customer First," we uphold a corporate culture built on integrity, responsibility, innovation, and mutual success.

Yangzhou Aiweite Electromechanical Co., Ltd.

Latest Updates

  • 1000-2500 kVA Universal Diesel Generator Sets: Key Procure...
    An 1800 kVA standby-rated diesel generator set cannot feed a 1500 kW process line hour after hour. Under ISO 8528-1:2018, the standby rating assumes emergency duty only, limits the 24-hour average load to 70% of rated output, and permits no planned overload; the same machine configured for prime d...

    Oct 09, 2026

  • 1000-2500 kVA Universal Diesel Generator Sets: Large-Scale...
    Losing power for thirty minutes can shut a production line, stop a pumping station, or force a process restart that wastes hours. When the required capacity reaches 1000-2500 kVA, a universal diesel generator set is not a small accessory; it is a major electrical asset that must be specified, inst...

    Oct 07, 2026

  • Baudouin Powered Diesel Generator Sets: Key Performance Fa...
    A petrochemical plant in Southeast Asia shortlisted two Baudouin powered diesel generator set packages for a 600 kVA standby application. The winning quotation had to prove four things: duty rating, derating behaviour, fuel consumption curve and control response. Those four factors separate a gene...

    Sep 28, 2026

Contat Us

Baudouin Powered Diesel Generator Sets Industry knowledge

Yangzhou Aiweite Electromechanical Co., Ltd. manufactures Baudouin Powered Diesel Generator Sets from 15 kW to 3000 kW, integrating genuine Baudouin heavy-duty diesel engines with full-copper brushless alternators and intelligent control systems. Since 2008 we have focused on generator production, system integration and installation, serving industrial, commercial and infrastructure projects worldwide.

The range covers standby, prime and continuous duty, with open-frame, silent canopy, trailer-mounted and containerized builds. Our factory in Yangzhou, China assembles, wires and load-tests each unit before shipment.

What Our Baudouin Powered Range Covers

Baudouin engines are French-designed industrial diesels with high-pressure common rail fuel injection, high-efficiency turbocharging and intercooling, replaceable wet cylinder liners and multi-turbo configurations on larger models. That architecture supports 0–100% load pickup and stable output under high altitude, high temperature, dust and salt-spray conditions.

We build the complete package around the engine: alternator, coupling, base frame, cooling, exhaust, fuel system, control panel and protection devices. Units are configured to ISO 8528 duty classes and tested against the electrical performance the project specifies.

Power Bands and Typical Applications

Power Band Typical Duty Application Fit
15–100 kW Standby, prime Commercial buildings, offices, shops, small facilities, daily emergency backup
100–1000 kW Prime, continuous Hospitals, malls, hotels, municipal engineering, medium factories and mines
1000–3000 kW Continuous, parallel Large data centers, industrial parks, ports, oil and gas fields, offshore islands, core power stations

Core Configuration

Engine

  • Genuine Baudouin 4M06, 4M08, 4M10, 4M12, 6M11, 6M12, 6M16, 6M21, 6M33, 8M33, 12M26, 12M33, 12M55, 16M33, 16M55 and 20M33 series generating engines.
  • High-pressure common rail injection and turbocharged intercooling for fast load response and low fuel consumption.
  • Replaceable wet cylinder liners and standardized parts for long overhaul intervals and simplified maintenance.

Alternator

  • Maintenance-free brushless synchronous alternator, full-copper windings, Class H insulation.
  • IP22–IP23 protection as standard, with higher protection available for dusty or coastal sites.
  • Voltage and frequency stability suited to IT equipment, data center loads and non-linear industrial devices.

Control and Monitoring

  • Bilingual LCD intelligent controller with full-range fault protection and automatic start/stop.
  • ATS power transfer, 4G remote monitoring, cloud management and multi-unit parallel operation.
  • Deep Sea, SmartGen, ComAp or customer-specified control platforms for OEM and ODM projects.

Model Reference and Dimensions

Model designations follow the AWT-B prefix with the prime power rating in kW. The table below shows representative 50 Hz Stage IIIA units; the full list runs from AWT-B14 through AWT-B3000, with corresponding 50 Hz and 60 Hz variants.

Model Prime / Standby Engine Open Type (mm / kg) Silent Type (mm / kg)
AWT-B50 50 / 55 kW 4M10G2D3/5 1800×800×1350 / 750 2400×1100×1550 / 1250
AWT-B200 200 / 220 kW 6M12G8D3/5 2470×950×1450 / 1600 3200×1300×1850 / 2500
AWT-B600 600 / 650 kW 6M33G8D3/5 2850×1000×1530 / 2500 3600×1400×2050 / 3600
AWT-B1200 1200 / 1320 kW 12M33G14D3/5 4500×2000×2350 / 9200 5500×2400×2800 / 12000
AWT-B2000 2000 / 2200 kW 12M55G4D3/5 8230×2600×2700 / 22000 Container build

Above roughly 1250 kW, units are normally supplied as open sets or integrated into containerized power stations because of footprint and transport limits. Dimensions and weights vary with enclosure, fuel tank and accessory selection.

Structure Options

The same Baudouin engine platform is available in several enclosure formats, and we match the format to the site rather than the other way around.

  • Open type — for plant rooms with existing ventilation and acoustic treatment, or where the set feeds a dedicated switchroom. See Open Type Diesel Generator Sets.
  • Silent type — canopy with acoustic lining and residential-grade muffler, typically ≤75 dB(A) at 7 m for the smaller frames. See Silent Type Diesel Generator Sets.
  • Trailer type — mobile units for construction, rental fleets and temporary site power.
  • Container type — ISO-footprint power stations for ports, oilfields, data centers and remote sites, with integrated fuel, cooling and control rooms.

Auxiliary Systems and Optional Accessories

  • Closed-loop cooling system sized for the site ambient temperature and altitude.
  • Triple-stage filtration for fuel, oil and air, with dust and salt-spray protection options.
  • Professional vibration dampers, low-noise muffler and integrated base frame with anti-vibration mounts.
  • ATS automatic transfer switch, paralleling cabinet, 4G remote monitoring and cloud management.
  • Low-temperature cold-start preheater, enlarged fuel tank, explosion-proof and anti-corrosion customization.
  • Genuine spare parts and full-lifecycle maintenance support.

Quality Control and Acceptance Testing

Every Baudouin powered set passes through incoming inspection of key components, assembly process verification, electrical safety checks and mechanical fitting inspection. Before delivery we run full-load testing from 0 to 110% of rated capacity, step load response testing, continuous operation endurance testing, voltage and frequency stability testing, and emergency protection system verification.

Test records, wiring diagrams, operation manuals and commissioning guidance are issued with the shipment. Where the project requires witnessed testing or third-party inspection, we coordinate the schedule and prepare the unit for the agreed acceptance protocol.

Installation and Site Integration

  • Foundation or plinth sized to the operating weight, with clearance for radiator airflow and service access.
  • Exhaust routing, flexible bellows and silencer support designed to keep back pressure within engine limits.
  • Fuel supply and return lines, day tank or bulk tank, and bunding where required by local regulation.
  • Cable sizing, neutral and earthing arrangement, and breaker coordination with the site distribution board.
  • Control interface to ATS, building management or SCADA via volt-free contacts, Modbus or Ethernet.

Related Engine Platforms

Where a project specifies a different engine brand, the same integration, enclosure and control approach applies across our range, including Cummins Powered Diesel Generator Sets, Perkins Powered Diesel Generator Sets, MTU, Volvo, Weichai, Yuchai and SDEC powered sets.

Information We Use to Configure Your Solution

To size and quote a Baudouin powered set accurately, we work from the following project inputs. Missing items are confirmed during the engineering review before production is released.

Input Why It Matters
Load list and starting method Sets prime or standby rating and alternator frame size
Duty class (standby / prime / continuous) Determines allowable load factor and annual running hours
Voltage, frequency, phase Fixes alternator winding and control settings
Site altitude and ambient temperature Drives derating and cooling package selection
Enclosure and noise limit Selects open, silent, trailer or container build
Control and communication protocol Matches controller, ATS and remote monitoring requirements
Fuel system and tank capacity Defines autonomy and bunding arrangement

Maintenance and Serviceability

Baudouin engines use standardized parts and accessible service points, which keeps routine maintenance straightforward. We supply genuine engine components, alternator parts, control and electrical spares, filters and consumables to support long-term operation and reduce downtime risk.

Typical service intervals cover oil and filter changes, coolant checks, fuel filter replacement, battery and charger inspection, and annual load bank verification. Our support team provides installation guidance, operation support and technical troubleshooting after commissioning.

Frequently Asked Questions

What power range do you build with Baudouin engines?

Our Baudouin powered range runs from 15 kW to 3000 kW in 50 Hz and 60 Hz configurations, covering standby, prime and continuous duty. Larger ratings above roughly 1250 kW are normally supplied as open sets or containerized power stations.

Can the set run in parallel with another unit or the grid?

Yes. We supply paralleling cabinets and controllers that support multi-unit parallel operation, load sharing and synchronization with an existing distribution system. The control platform is selected to match the site protocol.

What testing is carried out before shipment?

Each unit undergoes incoming component inspection, assembly verification, electrical safety checks, full-load testing from 0 to 110% of rated capacity, step load response testing, endurance running, and voltage and frequency stability testing. Emergency protection functions are verified before dispatch.

Do you support OEM and ODM customization?

We provide OEM and ODM manufacturing based on customer specifications, engineering requirements and application environments. Customization covers power configuration, engine selection, control system integration, enclosure design, voltage and frequency, and branding.

What documentation is supplied with the generator set?

Shipments include operation and maintenance manuals, wiring diagrams, test records and commissioning guidance. Additional documentation for project acceptance can be prepared against the agreed inspection protocol.

How do you handle spare parts and after-sales support?

We maintain a stable supply of genuine engine, alternator, control and consumable parts, and provide installation guidance, operation support and technical troubleshooting throughout the operating life of the set.
